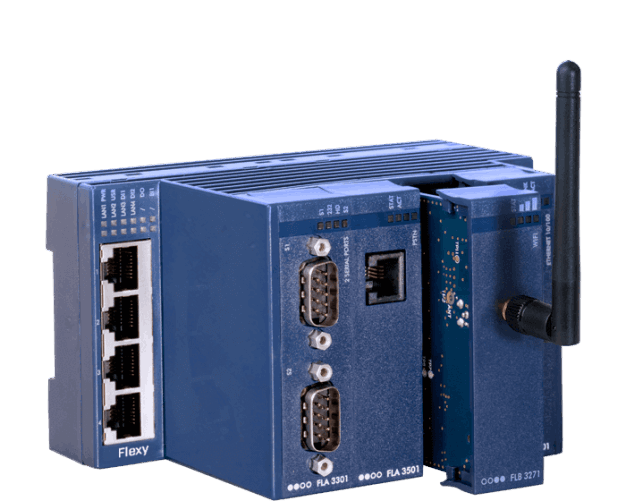

Ewon Flexy 200

Click for Live Demo

The Ewon Flexy is a data collection gateway between LAN, WAN and serial sides. With routing functions between LAN, WAN and serial sides, the Ewon Flexy 200 allows full remote access to devices located on the LAN side or on the serial side of the Flexy. You can choose between three modules: Ewon Flexy 201, Ewon Flexy 202 & Ewon Flexy 203.

Get The Brochure

Mobirise themes are based on Bootstrap 3 and Bootstrap 4 - most powerful mobile first framework. Now, even if you're not code-savvy, you can be a part of an exciting growing bootstrap community.

Choose from the large selection of latest pre-made blocks - full-screen intro, bootstrap carousel, content slider, responsive image gallery with lightbox, parallax scrolling, video backgrounds, hamburger menu, sticky header and more.

Sites made with Mobirise are 100% mobile-friendly according the latest Google Test and Google loves those websites (officially)!

Mobirise themes are based on Bootstrap 3 and Bootstrap 4 - most powerful mobile first framework. Now, even if you're not code-savvy, you can be a part of an exciting growing bootstrap community.

Choose from the large selection of latest pre-made blocks - full-screen intro, bootstrap carousel, content slider, responsive image gallery with lightbox, parallax scrolling, video backgrounds, hamburger menu, sticky header and more.

MODULARITY
The Ewon Flexy is fully modular. Building your Ewon Flexy begin with a choice of three base modules allowing you to connect to a wide range of industrial devices through various field protocols. The selection of extension cards will allow you to choose the best connectivities that fits your needs.

4 X LAN ETHERNET PORT
Connect your device directly into the Ewon Flexy to reach remotely over the VPN. In most cases this will limit the need to include an additional switch in the panel.

SERIAL GATEWAY
By choosing the Ewon Flexy 202 base, you will have access to large PLC support over RS232/RS485/422.

MPI GATEWAY
By choosing the Ewon Flexy x03 base, you will have access to large PLC support over MPI.

SECURE VPN CONNECTIVITY
A fully secure SSL-based VPN tunnel is used for all traffic. The information exchanged during the communication is encrypted via SSL (2048-bit key) allowing only authenticated users to connect to the Ewon.

PLUG'N ROUTE
The plug'n route feature allows to connect any Ethernet devices without the need to configure the gateway. No need to stop the machine while configuring the Ewon.

INTEGRATED WIFI & CELLULAR CONNECTIVITY
WiFi and cellular modems allow Internet connectivity while avoiding a connection on the factory/corporate LAN network. They offer free access, high bandwidth, easy deployment (no cabling) and facilitates secure network management.

CLOUD ACCELERATED LOADING
As speed of connection may be limited in some remote access situations, the Ewon Flexy offers a powerful Cloud accelerated loading feature to access your Ewon web HMI faster. Thanks to this you will only have to download your javascript library once as long as you do not make any change.

I/O SERVER
The Ewon Flexy is able to perform local data acquisition using the serial port or Ethernet port. The data acquisition process is built around a tagged database in which each tag is associated with an I/O server. The Ewon Flexy is compatible with all major protocols. You are also able to
create your own I/O server to make sure your Ewon Flexy is compatible with any equipment.

Build your Flexy
