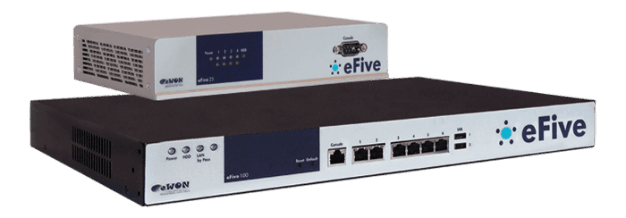

Ewon eFive

The eFive makes the perfect bridge between your remote site and your SCADA in a wide range of applications: water and waste water, utilities, wind power, energy, etc.

There are two different versions of the eFive: the eFive 25 and the eFive 100 allowing respectively up to 50 and 200 permanent remote VPN connections.

Get The Brochure

Mobirise themes are based on Bootstrap 3 and Bootstrap 4 - most powerful mobile first framework. Now, even if you're not code-savvy, you can be a part of an exciting growing bootstrap community.

Choose from the large selection of latest pre-made blocks - full-screen intro, bootstrap carousel, content slider, responsive image gallery with lightbox, parallax scrolling, video backgrounds, hamburger menu, sticky header and more.

Sites made with Mobirise are 100% mobile-friendly according the latest Google Test and Google loves those websites (officially)!

Mobirise themes are based on Bootstrap 3 and Bootstrap 4 - most powerful mobile first framework. Now, even if you're not code-savvy, you can be a part of an exciting growing bootstrap community.

Choose from the large selection of latest pre-made blocks - full-screen intro, bootstrap carousel, content slider, responsive image gallery with lightbox, parallax scrolling, video backgrounds, hamburger menu, sticky header and more.

Your Remote Control Application

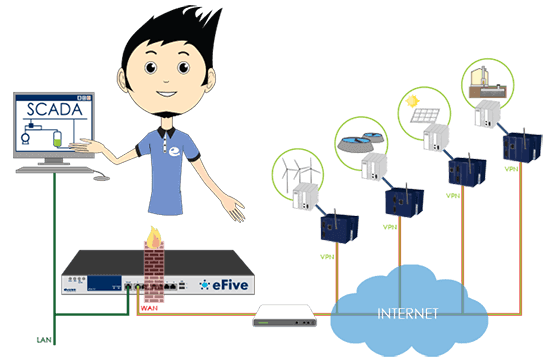

eFive provides a dedicated Internet connection to your SCADA network. Your eFive handles all connectivity and security tasks to enable your SCADA to connect to remote sites. You have full control of your VPN topology.
    Firewall + VPN server
    Requirements: Internet access with fixed IP or DynDNS


PERMANENT SECURE VPN CONNECTIONS
A secure VPN extranet is built between your PLC and SCADA. Up to 200 remote sites can be connected and interconnected.
EASY TO SETUP USING WIZARDS
eFive is designed for easy deployment and management through embedded Web based user interface. A configuration Wizard is available within the eWON industrial router to achieve a complete industrial extranet in a mouse click.
OPEN SOLUTION COMPLIANT WITH PLC AND SCADA
Your eFive handles all connectivity and security tasks to enable your SCADA to connect to remote sites. You can use an eWON router as a Modbus TCP server and built-in gateway for easy integration with wide variety of industrial Ethernet/Serial devices using various protocols: PPI, MPI, Profibus, ISO TCP, DF1, EtherNet/IP, Modbus RTU, Modbus TCP, FINS Hostlink, FINS TCP, etc.
THE OPC TECHNOLOGY USING EWON FLEXY
eFive in combination with the Ewon Flexy provide you an OPC technology solution offering easy and further data integration. The Ewon Flexy OPC server fits perfectly into the SCADA world (infrastructure, water, energy applications, etc.) and furthermore it turns out as a real advantage for providing data to any OPC client (MES, ERP, etc.) into a factory.
VPN BRIDGE MODE
With the VPN bridge mode you will connect all your VPN equipments on the same subnet than your SCADA.
FIREWALL
The eFive embedded firewall protects your control network from Internet threats while providing appropriate access to resources inside and outside your network. The firewall interface is very user-friendly and intuitive. eFive Traffic Shaping and Traffic/Systems/Firewall/IDS graphs are available to help you monitor and secure your application.
VPN SERVER
True SSL/TLS VPN (Open VPN) / Encryption: DES, 3DES, AES, 128/192/256-bit / Authentication: Pre-shared key, X.509, Certification Authority
